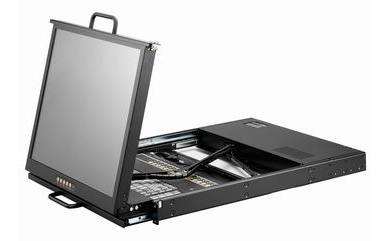

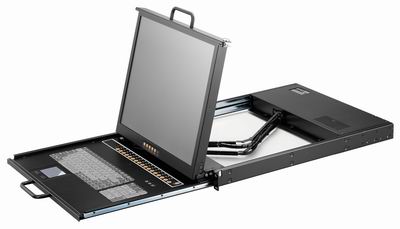

AMK716 1U Dual Slide Rail 17", 19" LCD Console with 16-port PS2/ Combo KVM



AMK716



AMK716
  • Meets EIA310c & IEC-3 specifications
  • 1U, Dual Slide Rail, built-in A-grade 17" or 19" Rack LCD
  • Console with 16-port PS2 or Combo KVM switch
  • Includes a key-locking mechanism to prevent unauthorized access
  • Industrial keyboard with touch pad
  • Provides up to 130-degree monitor rotation for viewing flexibility
  • Built-in rail self-locking device
  • Tempered glass protect LCD screen
  • Easy PC selection via Front push buttons, Hot keys, On Screen Display

  • Get a Quote :
AMK716 AMK716
PS2 KVM Switch Combo (PS2&USB) KVM Switch
PS2 KVM Cable USB KVM Cable
PS2 KVM Cable USB KVM Cable


KVM Cable Length Option: 1.8m/ 3.0m/ 5.0m
Specification

AMK716
Drawer Design

19" rackmount, 1U, Dual slide rail for panel and keyboard enable independent extraction of either panel or keyboard alone

Weight 13 kgs
Dimension 442.4 x 44 x 590 mm (W x H x D)
Power Supply Built-in 60W, 90~264VAC Auto Switch, Operating Temp.: -20~70°C
(Option: 80W, 24~48VDC)
Construction Heavy-duty steel
Keyboard

Industrial keyboard with touchpad

Option KB: CH, FR, GR, IT, JP, KR, PT, RU, SP, UK, US

Physical Security Key locking Mechanism
Protection Tempered glass protect LCD screen
Power Consumption 3 watts stand-by, 25 watts in-use
Display

LCD Size: 17" or 19"
Resolution: 1280x1024
Contrast Ratio: 1000:1
Viewing Angle: 170(H)/160(V)
Display Colors: 16.7M

KVM Switch

KVM Switch: PS2 KVM or Combo (PS2 & USB) KVM
Port Connection: 16-Port DB-15
Port Expansion: Daisy Chain up to 8 levels to support 128 servers
Port Selection: 16x Front Push Buttons, OSD Menu, Hotkey
Power Connector: 1x 3-prong AC Socket
Switch Reset: 1x push button
Switch Power: 1x Rocker Switch
Switch LCD on/off: 1x Front standby Piush button
Switch LCD control: 4x LCD Adjust push button
LED Port Status: 16x Operation, 16x Power,
LED Key Status: 1x Num Lock, 1x Cap Lock, 1x Scroll Lock

  • 16 port PS2/ COMBO PS2/USB KVM with military industrial grade production
  • Support Password protection and Server name
  • Support extra daisy chain port and no waste server port for expansion
  • Support Windows, DOS, Netware, Unix, Linux, Mac and Sun Micro Systems
  • Hot Plug- add or remove connected computer without powering off
  • No software required. Selection via Front Push Button, Hot Key, OSD menu
  • Support PS/2 or USB (COMBO) cable to PC
  • Auto Scan mode. Easy to monitor Server Operation
  • Superior Video Bandwidth unto 200MHz
  • Keyboard status restored when switching computers
  • LED display for status monitor
  • Buzzer sound for Server switched confirmation
  • Environment

    Operating Non-Operating
    Temperature 0°C~50°C -20°C~60°C
    Relative Humidity 0%~90% 0%~90%
    Approval CE, FCC, RoHS
    Part No.

    Ordering Information
    AMK716-17PBUS 1U, Dual Slide Rail, 17" LCD keyboard drawer, 16 ports PS2 KVM switch, 16 x 1.8m KVM cable
    AMK716-17CBUS 1U, Dual Slide Rail, 17" LCD keyboard drawer, 16 ports COMBO KVM switch, 16 x 1.8m KVM cable
    AMK716-19PBUS 1U, Dual Slide Rail, 19" LCD keyboard drawer, 16 ports PS2 KVM switch, 16 x 1.8m KVM cable
    AMK716-19CBUS 1U, Dual Slide Rail, 19" LCD keyboard drawer, 16 ports COMBO KVM switch, 16 x 1.8m KVM cable
    Packing List

    1 * AMK Rack LCD Console 2 * Keys
    1 * Power Cord 1 * User's manual
    16 * 1.8m KVM cable 1 * Screw Pack
    2 * Bracket 1 * Foam with Box
