AMK801 1U Rackmount Single Rail 17", 19" LCD Keyboard Drawer PS2 or USB KB/MS



AMK801

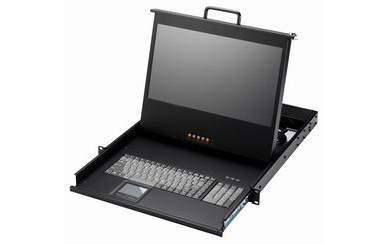

AMK801-17W
  • Meets EIA310c & IEC-3 specifications
  • 1U, Single slide rail for keyboard and LCD Monitor
  • Built-in 17" or 19" LCD Monitor,PS2 or USB keyboard and touchpad
  • Includes a key-locking mechanism to prevent unauthorized access
  • Industrial keyboard with touch pad
  • Provides up to 130-degree monitor rotation for viewing flexibility
  • Built-in rail self-locking device
  • Tempered glass protect LCD screen
  • Optional Touchscreen or Sunlight readable Available
  • Optional 17.3" FHD 1920x1080 LED Display with DVI

  • Get a Quote :
AMK801 AMK801-17W
PS2 KVM Cable USB KVM Cable
PS2 KVM Cable USB KVM Cable


KVM Cable Length Option: 1.8m/ 3.0m/ 5.0m
Specification

AMK801 / AMK801-17W
Ports Switch VGA D-Sub 15 pin, USB or PS/2 keyboard Mouse
(Option: DVI or HDMI Input)
Drawer Design

19" rackmount, 1U, Single slide rail for extraction of both panel and keyboard

Weight 12 kgs
Dimension 442.4 x 44 x 480 mm (W x H x D)
Power Supply Built-in 60W, 90~264VAC Auto Switch, Operating Temp.: -20~70°C
(Option: 80W, 24~48VDC)
Construction Heavy-duty steel
Keyboard

Industrial keyboard with touchpad

Option KB: CH, FR, GR, IT, JP, KR, PT, RU, SP, UK, US

Physical Security Key locking Mechanism
Protection Tempered glass protect LCD screen
Power Consumption 3 watts stand-by, 25 watts in-use
Display

LCD Size: 17" or 19"
Resolution: 1280x1024
Contrast Ratio: 1000:1
Viewing Angle: 170(H)/160(V)
Display Colors: 16.7M

(Option: 17.3" 1920x 1080 LCD)
Environment

Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 0%~90% 0%~90%
Approval CE, FCC, RoHS
Part No.

Ordering Information
AMK801-17PBUS 1U, Single rail, 17" LCD keyboard drawer, PS2 KB/MS with 1.8m KVM cable for 19" rack-mount
AMK801-17UBUS 1U, Single rail, 17" LCD keyboard drawer, USB KB/MS with 1.8m KVM cable for 19" rack-mount
AMK801-19PBUS 1U, Single rail, 19" LCD keyboard drawer, PS2 KB/MS with 1.8m KVM cable for 19" rack-mount
AMK801-19UBUS 1U, Single rail, 19" LCD keyboard drawer, USB KB/MS with 1.8m KVM cable for 19" rack-mount
AMK801-17WPBUS 1U, Single rail, 17.3" 1920x 1080 LCD keyboard drawer, PS2 KB/MS with 1.8m KVM cable for 19" rack-mount
AMK801-17WUBUS 1U, Single rail, 17.3" 1920x 1080 LCD keyboard drawer, USB KB/MS with 1.8m KVM cable for 19" rack-mount
AMK801-17PBDUS 1U, Single rail, 17" LCD keyboard drawer, DVI, PS2 KB/MS with 1.8m KVM cable for 19" rack-mount
AMK801-17UBDUS 1U, Single rail, 17" LCD keyboard drawer, DVI, USB KB/MS with 1.8m KVM cable for 19" rack-mount
AMK801-1xxxBDUS 1U, Single rail, Option LCD keyboard drawer, DVI, Option KB/MS with 1.8m KVM cable for 19" rack-mount
Packing List

1 * AMK Rack LCD Console 2 * Keys
1 * Power Cord 1 * User's manual
1 * 1.8m KVM cable 1 * Screw Pack
2 * Bracket 1 * Foam with Box
