Portable

ARL970 17" Slot Notebook System with Battery Powered Option



ARL970





ARL970-B
  • Integrated 17.3" LCD Display with anti-reflection tempered glass
  • Optional 2x 95WHr Li-Ion battery powered option
  • Standard 250W Power Supply integrated
  • Intel Ivy Bridge 3rd Gen Core i5 and i7 Processor
  • Supports 2 Slots Expansions
  • Dual Gigabit LAN Ports with USB 3.0 Interface
  • Available DVI and DP for external video output
  • Aluminum Alloy Housing Construction
  • Integrated Keyboard and Touchpad

  • Get a Quote :

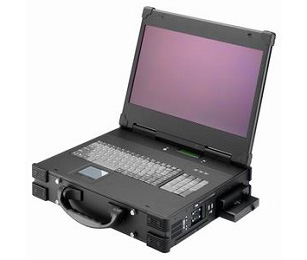

The ARL970 is a notebook style portable with multi-slots capability utilizing ultra fast mobile processing and integrated into an aluminum chassis construction with corner bumper protection. It features the Intel Core i7 or i5 multi-core energy efficient processor. The unit offers either 1x PCI-E x16 + 1x PCI-E x1 expansion or 2x PCI expansion slot for the latest high speed acquisition boards. Internal storage support a built-in SATA with an extra removable 2.5" drive bay for data sensitive material. Everything is combine in a portable package with a high brightness contrast LCD and folds down into a notebook.
The ARL970-B offers battery operated capability option. The unit can be fitted with dual high capacity Li-ion hot-swappable battery totaling 190WHr which enable the unit to be up while changing the exhausted battery. Normal operation will allow the unit to operate on battery for upto 4 hours when fully charged.
Specification

ARL970 / ARL970-B
CPU Intel Core i5-3210M Dual Core 2.5GHz Processor
(Option: Intel Core i7-3610QM Quad Core 2.3GHz Processor)
Chipset

Intel QM77 Express Chipset

Slot 1 PCI-E (x16) + 1 PCI-E (x1) Full Length Expansion Slot
(Option: 2 PCI  Full Length Slots)
Display

17.3" TFT LCD display, 1920x 1080

VGA LVDS, Intel On-Processor HD Graphic Processor
Memory 2x 4GB DDR3
HDD 1x 500GB 2.5", 7200 rpm SATA HDD, Support 1x 2.5" removable SATA
(Option: SSD drive available)
Optical 1x Slim DVD-RW
Interface 2x DB9 for COM1, COM2, DVI-D + DVI-I connector, 2x USB 3.0 connector, 4x USB 2.0 connector
DP connector, 2x Gbit LAN RJ-45, RCA Jack 3x1 for HD audio
LAN Intel® 82579LM Gigabit LAN PHY
Intel® 82583V Gigabit LAN
Audio Realtek ALC892 for 7.1 CH audio
KB/MS

104-key industrial keyboard with touchpad, Operating life of keys: 8 million cycles

Option KB: CH, FR, GR, JP, KR, RU, UK, US

Power Supply 250W, 100~240VAC, Auto switch

(Option: 2x 95W Li-ION battery Packs (Hot-Swappable) with 100W AC Adapter, up to 4 hours battery life)

Construction Aluminum Construction with shock absorbing rubber corners
Speaker Built-in amplified 2x 3W speakers
Dimension 428.6Wx 110.7Hx 367.5D mm
Weight 6.8 kgs
Carrying Case Padded carrying case with wheels
Environment

Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Approval CE, FCC, RoHS
Part No.

Ordering Information
ARL970-17WUSA 17.3" LCD, i5-3210M CPU, 2x 4G RAM, 2 PCI-E (x16, x1), 500G HDD, DVD-RW, 250W PSU, Carrying case
ARL970-17WUSB 17.3" LCD, i5-3210M CPU, 2x 4G RAM, 2 PCI, 500G HDD, DVD-RW, 250W PSU, Carrying case
ARL970-B17WUSA

17.3" LCD, i5-3210M CPU, 2x 4G RAM, 2 PCI-E (x16, x1), 500G HDD, DVD-RW, Battery packs, Carrying case

ARL970-B17WUSB

17.3" LCD, i5-3210M CPU, 2x 4G RAM, 2 PCI, 500G HDD, DVD-RW, Battery packs, Carrying case
