Portable

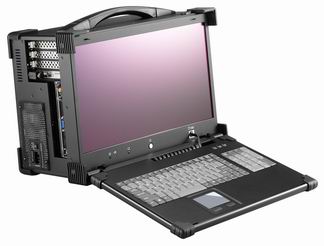

ARP640 17" Micro ATX Portable



ARP640



ARP640-17W



ARP640



ARP640
  • Integrated 17.3" Full HD LCD Display with 1920x1080 Resolution
  • 650W Full Range Power Supply
  • Optional Touchscreen
  • Supports 4 Slots Micro ATX Form Factor
  • Support 3.5" or 5.25" Drive Bay
  • Aluminum Alloy Construction
  • Integrated Keyboard and Touchpad
    •

  • Get a Quote :
The ARP640 supports standard Micro ATX form factor motherboard in a compact lightweight form factor. The chassis has the flexibility to meet the need of your add-on cards configuration as well as processors choice. Whether it is ISA, PCI, PCI-X, PCI-E or combination of all of the above; the chassis can be fitted for 4 full length and height card slots. The chassis comes with integrated 17.3" 16:9 widescreen LED backlight LCD panel with 1920x1080 Full HD resolution. The chassis have upto 2x 5.25" and 1x 3.5" drive bay; allows the chassis to mount large amount of storage or special devices. There is also 80mm cooling fan and a combination keyboard touchpad that folds into the chassis and doubles as an additional protection for the display.
Specification
 		 ARP640
Motherboard Support Micro ATX Motherboard
Slots

Offer 4 full length expansion slots (338.5mm)
Drive bay 2x 5.25”, 1x slim DVD-RW, 1x 3.5”
(Option: 2x 3.5”, 1x slim DVD-RW when use with 1U Power Supply )
Display

17.3" FHD LCD display, 1920x 1080, LED backlight

Anti-reflection tempered strengthen glass
VGA AD conversion board, DVI interface (Option VGA)
KB/MS

104-key industrial keyboard with touchpad, Operating life of keys: 8 million cycles

Option KB: CH, FR, GR, IT, JP, KR, PT, RU, SP, UK, US
Power Supply PS2, 650W, 100~240VAC, Auto switch

(Option: 1U 600W, 100~240VAC Auto Switch)
Construction Aluminum Construction with shock absorbing rubber corners
Speaker Built-in amplified 2x 3W speakers
Dimension 422Wx 329Hx 230D mm
Weight 10 kgs
Carrying Case Padded carrying case with wheels
Environment
 		 Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Approval CE, FCC, RoHS
Part No.
 		 Ordering Information
ARP640-P17WUSD 17.3" LCD, 1920x 1080, 4 slots, 2x 5.25", 1x 3.5", DVD-RW, PS2 650W, DVI, Carrying case
ARP640-P17WUS 17.3" LCD, 1920x 1080, 4 slots, 2x 5.25, 1x 3.5"", DVD-RW, PS2 650W, VGA, Carrying case
ARP640-17WUSD

17.3" LCD, 1920x 1080, 4 slots, 2x 3.5", DVD-RW, 1U 600W, DVI, Carrying case
ARP640-17WUS

17.3" LCD, 1920x 1080, 4 slots, 2x 3.5", DVD-RW, 1U 600W, VGA, Carrying case
