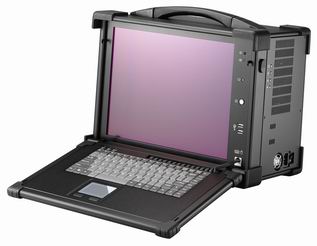

ARP650 15" SBC Backplane Portable



ARP650



ARP650-15



ARP650
  • Integrated 15" Panel Display with 1024x768 Resolution
  • 1U 400W Full Range Power Supply
  • Offer 1x slim DVD-RW, 2x 3.5” drive bays
  • Optional Touchscreen

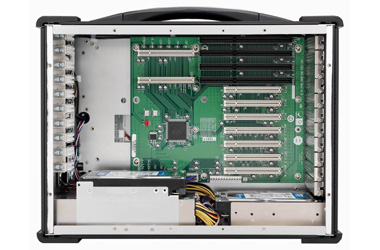

  • Supports upto 11 Slots Backplane with SBC
  • Aluminum Extrusion Housing Design
  • Integrated Keyboard and Touchpad
    •

  • Get a Quote :
The ARP650 supports array of single board computer backplanes, PCIMG 1.0, 1.2 and 1.3. This ensure that the chassis can always meet the need of your add-on cards. Whether it is ISA, PCI, PCI-X, PCI-E or combination of all of the above; the chassis can be fitted with the proper backplane for upto 11 available slot opening. Whether it is a embedded processor or to the latest multi-cores processors, the chassis will never be out of date. The combination with the integrated LCD panel and keyboard (w/ pointing device) ensure the chassis is truly mobile and provide enough flexibility for any data acquisition, testing or processing needs.
Specification
 		 ARP650
Motherboard Support SBC with Backplane
Slots

Offer 11 expansion slots
Drive bay 1x slim DVD-RW, 2x 3.5” drive bays
Display

15" TFT LCD Monitor, 1024x 768, 250 nits brightness, 16.2M, MTBF: 50,000 hours

Anti-reflection tempered strengthen glass
VGA ST GM5621 AD conversion board, VGA interface (Option DVI)
KB/MS

87-key industrial multi-languages Keyboard/ touchpad

Option KB: CH, FR, GR, JP, KR, RU, UK, US
Power Supply 1U, 400W, 115~230VAC, Auto switch
Construction Rugged Aluminum Construction with shock absorbing rubber corners
Speaker Built-in amplified 2x 3W speakers
Dimension 412Wx 330Hx 228D mm
Weight 11 kgs
Carrying Case Padded carrying case with wheels
Environment
 		 Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Shock

10g, 11ms, half-Sine

 30g, 11ms, half-Sine
Vibration

10-500Hz (0.4 Grms)

 10-500Hz (1.12 Grms)
Relative Humidity 10%~90% 10%~95%
Approval CE, FCC, RoHS
Part No.
 		 Ordering Information
ARP650-15 15" LCD, 11 slots for SBC with backplane, keyboard with touchpad, 400W PSU, Carrying case
