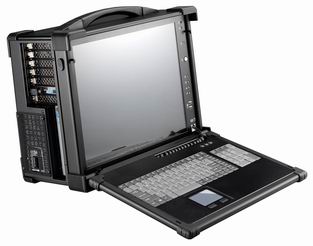

ARP670 Rugged Portable 17" LCD ATX EATX Chassis



ARP670



ARP670-17W



ARP670-17



ARP670
  • 17" Built-in LCD with Tempered Glass Protection
  • High Resolution Display from 1280x1024 Up to 1920x1080
  • Optional Sunlight Readable / Resistive Touchscreen
  • 7-Slot PCI-E, PCI-X and PCI Expansion / Dual Xeon Processors
  • Aluminum Extrusion Housing Design
  • Integrated Keyboard and Touchpad
  • Customized 10 Slot Option for Passive Backplane with SBC
    •

  • Get a Quote :
The ARP670 is a mobile 7-slot portable workstation with rugged aluminum extrusion chassis construction and corner bumper protection. It utilizes the latest Intel Core processor for the fastest processing and best value in the market. Also available is dual Multi-Core Xeon processors when ultra high processing demand is needed. The unit compacts around a 17" high resolution 1280x1024 LCD and with optional full HD 1920x1080 available. Offers both internal and removable drive space which is capable of full scaling. Everything is combine in a portable package with USB, Gigabit Ethernet, Audio and a foldable keyboard w/ touchpad.
Specification
 		 ARP670
Motherboard Support ATX M/B and EATX M/B
(Option: Passive Backplane SBC 10 Slots)
Slots

Offer 7 expansion slots
Drive bay 2x 5.25”, 1x slim DVD-RW, 1x 3.5”
(Option: 1x 5.25”, 1x slim DVD-RW, 2x 3.5”)
Display

17" TFT LCD Monitor, 1280 x 1024, 300 nits brightness, 16.7M, 800:1, MTBF: 50,000 hours

Anti-reflection tempered strengthen glass

(Option 17.3" 1920 x 1080 TFT LCD)
VGA AD conversion board, DVI interface (Option VGA)
KB/MS

104-key industrial keyboard with touchpad, Operating life of keys: 8 million cycles

Option KB: CH, FR, GR, IT, JP, KR, PT, RU, SP, UK, US
Power Supply PS2, 650W, 100~240VAC, Auto switch
Construction Rugged Aluminum Construction with shock absorbing rubber corners
Speaker Built-in amplified 2x 3W speakers
Dimension 433Wx 372Hx 227D mm
Weight 12 kgs
Carrying Case Padded carrying case with wheels
Environment
 		 Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Shock

10g, 11ms, half-Sine

 30g, 11ms, half-Sine
Vibration

10-500Hz (0.4 Grms)

 10-500Hz (1.12 Grms)
Approval CE, FCC, RoHS
Part No.
 		 Ordering Information
ARP670-17USA 17" LCD, 7 slots for ATX MB, 2B, 1S, 1slim drive bays, VGA interface, Carrying case
ARP670-17USB 17" LCD, 7 slots for ATX MB, 1B, 2S, 1slim drive bays, VGA interface, Carrying case
ARP670-17USAD

17" LCD, 7 slots for ATX MB, 2B, 1S, 1slim drive bays, DVI interface, Carrying case
ARP670-17USBD

17" LCD, 7 slots for ATX MB, 1B, 2S, 1slim drive bays, DVI interface, Carrying case
ARP670-17WUSA 17", 1920x1080, 7 slots for ATX MB, 2B, 1S, 1slim drive bays, VGA interface, Carrying case
ARP670-17WUSB 17", 1920x1080, 7 slots for ATX MB, 1B, 2S, 1slim drive bays, VGA interface, Carrying case
ARP670-17WUSAD

17", 1920x1080, 7 slots for ATX MB, 2B, 1S, 1slim drive bays, DVI interface, Carrying case
ARP670-17WUSBD

17", 1920x1080, 7 slots for ATX MB, 1B, 2S, 1slim drive bays, DVI interface, Carrying case
ARP670-S17xxxx

17", Option LCD, 10 slots for PB SBC, Option drive bays, VGA interface, Carrying case
