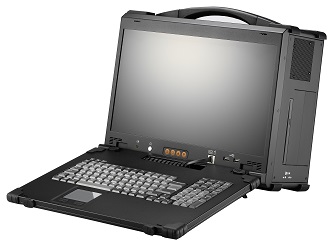

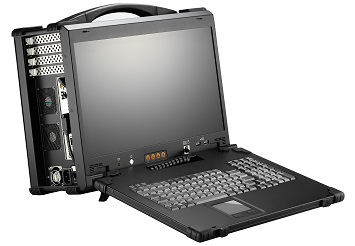

ARP840 17" Micro ATX Slim Portable



ARP840



ARP840



ARP840
  • Aluminum Alloy Construction with shock absorbing rubber corners
  • Integrated 17.3" Full HD LCD Display with 1920x1080 Resolution
  • Supports 4 Slots Micro ATX Form Factor
  • 1U 600W Full Range Power Supply
  • Optional Touchscreen
  • Support 2x 5.25", 1x 2.5" hidden, slim DVD-RW drive bays
  • Integrated Keyboard and Touchpad

  • Get a Quote :

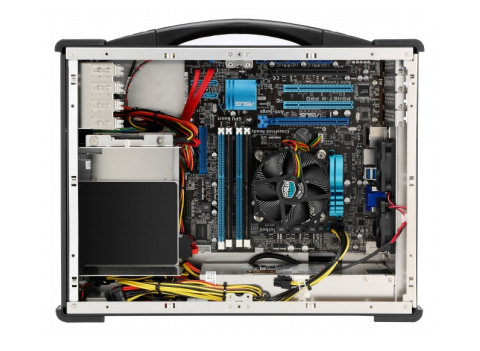

The ARP840 is an extra slim and lightweight portable that is critical for airline carry-on travel. The chassis retains all the flexibility supporting Micro ATX motherboard to meet the need of your add-on cards configuration as well as processors choice. The chassis can be fitted for 4 full length card slots with integrated 17.3" 16:9 widescreen LED backlight LCD panel with 1920x1080 Full HD resolution. The chassis have upto 2x 5.25" and 1x 2.5" drive bay; allows the chassis to mount large amount of storage or special devices. There is also 80mm cooling fan and a combination keyboard touchpad that folds into the chassis and doubles as an additional protection for the display.
Specification

ARP840
Motherboard Support Micro ATX Motherboard
Slots

Offer 4 full length expansion slots (338.5mm)

Drive bay Support 2x 5.25", 1x 2.5" hidden, slim DVD-RW
Display

17.3" FHD LCD display, 1920x 1080, LED backlight

(Option: 17.3", 3840x 2160 resolution)

VGA AD conversion board, DVI interface (Option VGA)
KB/MS

Industrial keyboard with touchpad, Operating life of keys: 8 million cycles

Option KB: CH, FR, GR, KR, RU, US

Power Supply 1U, 600W, 100~240VAC, Auto switch
Construction Aluminum Construction with shock absorbing rubber corners
Speaker Built-in amplified 2x 3W speakers
Dimension 417Wx 352Hx 186D mm
Weight 8 kgs
Carrying Case Padded carrying case with wheels
Environment

Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Approval CE, FCC, RoHS
Part No.

Ordering Information
ARP840-17WUSD 17.3" LCD, 1920x 1080, 4 slots, 2x 5.25", 1x 2.5" hidden, DVD-RW, DVI, Carrying case
ARP840-17WUS 17.3" LCD, 1920x 1080, 4 slots, 2x 5.25", 1x 2.5" hidden, DVD-RW, VGA, Carrying case
ARP880-17UUSP 17.3" LCD, 3840x 2160, 4 slots, 2x 5.25", 1x 2.5" hidden, DVD-RW, DP, Carrying case
