ARP890 23.8" High Profile EATX Portable



ARP890



ARP890



ARP890
  • Aluminum Alloy Construction with shock absorbing rubber corners
  • Integrated 23.8" Full HD LCD Display with 1920x1080 Resolution
  • Supports 7 Slots EATX and ATX Form Factor
  • PS2, 650W Full Range Power Supply, 100~240VAC
  • Optional 23.8" 4K LCD with 3840x 2160 resolution
  • Support 7x 5.25", 1x 3.5" hidden, slim DVD-RW drive bays
  • Integrated Keyboard and Touchpad

  • Get a Quote :

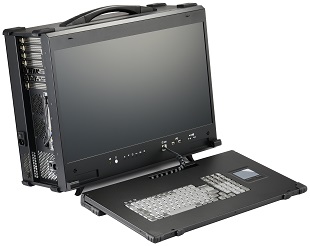

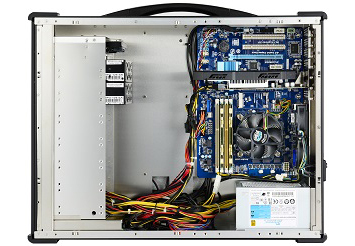

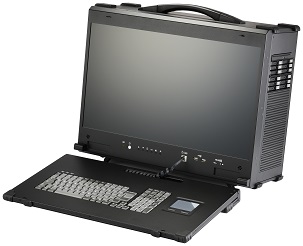

The ARP890 is an large display portable that is critical for field use when the requirement demands a large display portable computing unit. The chassis retains all the flexibility supporting both EATX and ATX motherboard to meet the need of your add-on cards configuration as well as processors choice. The chassis can be fitted for 7 full length card slots with integrated 23.8" 16:9 widescreen LED backlight LCD panel with 1920x1080 Full HD resolution. An optional 4K 3840x 2160 resolution display can be install when require. The chassis also boast 7x 5.25" and 1x 3.5" drive bay; allowing the chassis to mount large amount of storage or special devices. There is also a combination keyboard touchpad that folds into the chassis and doubles as an additional protection for the display.
Specification

ARP890
Motherboard Support EATX and ATX Motherboard
Slots

Offer 7 full length expansion slots (338.5mm)

Drive bay Support 7x 5.25", 1x 3.5" hidden, slim DVD-RW
Display

23.8" FHD LCD display, 1920x 1080, LED backlight

(Option: 23.8", 3840x 2160 resolution)

VGA AD conversion board, DVI interface (Option VGA)
KB/MS

Industrial keyboard with touchpad, Operating life of keys: 8 million cycles

Option KB: CH, FR, GR, KR, RU, US

Power Supply PS2, 650W, 100~240VAC, Auto switch
Construction Aluminum Construction with shock absorbing rubber corners
Speaker Built-in amplified 2x 3W speakers
Dimension 564.5Wx 462Hx 229.7D mm
Weight 15 kgs
Carrying Case Padded carrying case with wheels
Environment

Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Approval CE, FCC, RoHS
Part No.

Ordering Information
ARP890-23USD 23.8" LCD, 1920x 1080, 7 slots, 7x 5.25", 1x 3.5" hidden, DVD-RW, DVI, Carrying case
ARP890-23US 23.8" LCD, 1920x 1080, 7 slots, 7x 5.25", 1x 3.5" hidden, DVD-RW, VGA, Carrying case
ARP890-4KUSP 23.8" LCD, 3840x 2160, 7 slots, 7x 5.25", 1x 3.5" hidden, DVD-RW, DP, Carrying case
