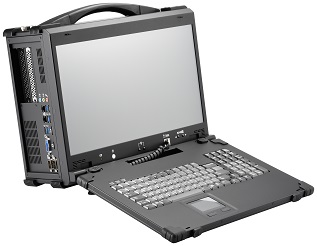

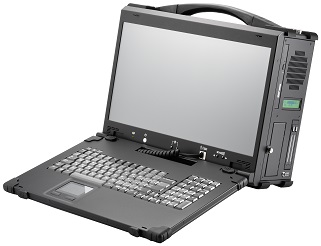

ARP992 17.3" Portable System with Battery Powered Option



ARP992



ARP992



ARP992
  • Integrated 17.3" 1920x 1080 LCD Display
  • Optional 2x 95WHr Li-Ion battery powered option
  • Standard 250W Power Supply integrated
  • Intel Kaby Lake 7th Gen Core i5 and i7 Processor
  • Supports 3 Slots Expansions
  • Dual Gigabit LAN Ports with USB 3.0 Interface
  • Available DVI, HDMI and DP for external video output
  • Lightweight Aluminum Housing Construction
  • Integrated Keyboard and Touchpad
    •

  • Get a Quote :

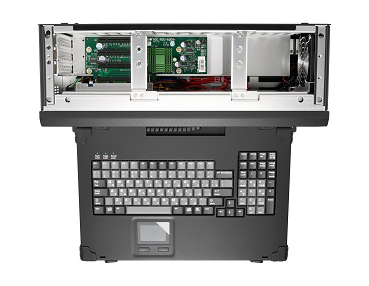

The ARP992 is a mobile ultra fast processing multi-slot computing system with rugged aluminum chassis construction and corner bumper protection. It features the 7th Gen Intel Core i7 or i5 multi-core energy efficient processor. The unit offers either 2x PCI + 1x PCI-E x16 expansion or 1x PCI-E x16 + 2x PCI-E x1 expansion slot or 2x PCI-E x8 + 1x PCI-E x1 lane expansion slot for the latest high speed acquisition boards. Internal storage support a built-in SATA with extra 2 removable 2.5" drive bay for data sensitive material. Everything is combine in a portable package with a high brightness contrast LCD and foldable keyboard w/ touchpad.
The ARP992-B offers battery operated capability option. The unit can be fitted with dual high capacity Li-ion hot-swappable battery totaling 190WHr which enable the unit to be up while changing the exhausted battery. Normal operation will allow the unit to operate on battery for upto 4 hours when fully charged.
Specification
 		 ARP992 / ARP992-B
CPU Intel Core i5-7440EQ Quad Core 2.9GHz Processor
(Option: Intel Core i7-7820EQ Quad Core 3.0GHz Processor)
Chipset

Intel CM238 Express Chipset
Slot 2 PCI + 1 PCI-E x16 Full Length Expansion Slot
(Option: 1 PCI-E x16 + 2x PCI-E x1 Full Length Slots)
(Option: 2 PCI-E x8 + 1 PCI-E x1 Full Length Slots)
Display

17.3" TFT LCD display, 1920x 1080
VGA LVDS, Intel On-Processor HD Graphic Processor
Memory 2x 8GB DDR4
HDD 1x 250GB 2.5", SATA SSD, Support 2x 2.5" removable SATA
Optical 1x Slim DVD-RW
Interface 2x DB9 for COM1, COM2, DVI-D connector, 6x USB 3.0 connector
DP + HDMI connector, 2x Gbit LAN RJ-45, RCA Jack 3x1 for HD audio
LAN Intel® I219LM Gigabit LAN PHY
Intel® I211AT Gigabit LAN
Audio Realtek ALC892 for 7.1 CH audio
KB/MS

104-key industrial keyboard with touchpad, Operating life of keys: 8 million cycles

Option KB: CH, FR, GR, JP, KR, RU, UK, US
Power Supply 250W, 100~240VAC, Auto switch

(Option: 2x 95W Li-ION battery Packs (Hot-Swappable) with 100W AC Adapter, up to 4 hours battery life)
Construction Aluminum Construction with shock absorbing rubber corners
Speaker Built-in amplified 2x 3W speakers
Dimension 418Wx 352Hx 166D mm
Weight 7.6 kgs
Carrying Case Padded carrying case with wheels
Environment
 		 Operating Non-Operating
Temperature 0°C~50°C -20°C~60°C
Relative Humidity 10%~90% 10%~95%
Shock

10g, 11ms, half-Sine

 30g, 11ms, half-Sine
Vibration

10-500Hz (0.4 Grms)

 10-500Hz (1.12 Grms)
Approval CE, FCC, RoHS
Part No.
 		 Ordering Information
ARP992-17WUSC 17.3" LCD, i5-7440EQ CPU, 2x 8G RAM, 2 PCI, PCI-E (x16), 250GB SSD, DVD-RW, 250W PSU, Carrying case
ARP992-17WUSD 17.3" LCD, i5-7440EQ CPU, 2x 8G RAM, 3 PCI-E (x16, x1, x1), 250GB SSD, DVD-RW, 250W PSU, Carrying case
ARP992-17WUSG

17.3" LCD, i5-7440EQ CPU, 2x 8G RAM, 3PCI-E (x8, x8, x1), 250GB SSD, DVD-RW, 250W PSU, Carrying case
ARP992-B17WUSC

17.3" LCD, i5-7440EQ CPU, 2x 8G RAM, 2 PCI, PCI-E (x16), 250GB SSD, DVD-RW, Battery packs, Carrying case
ARP992-B17WUSD

17.3" LCD, i5-7440EQ CPU, 2x 8G RAM, 3 PCI-E (x16, x1 ,x1), 250GB SSD, DVD-RW, Battery packs, Carrying case
ARP992-B17WUSG

17.3" LCD, i5-7440EQ CPU, 2x 8G RAM, 3 PCI-E (x8, x8, x1), 250GB SSD, DVD-RW, Battery packs, Carrying case
