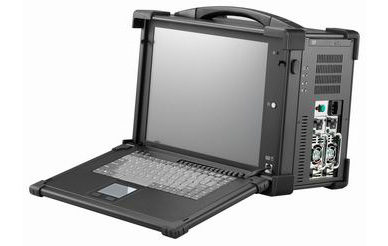

ARX308 15" PXI cPCI Portable Instrument with Touchscreen
- Designed for portable instrument applications
- Accepts both 3U PXI and CompactPCI Modules
- 3U, 8-slot Portable Instrument
- Built-in 15” LCD display with touch screen, 1024x 768, 16.2M
- One system slot and 7 PXI peripheral slots
- PS2 400W power supply
- Optional Dual hot swapping 300W mini-redundant power supply)
- Aluminum Extrusion Housing Design
- Integrated Keyboard and Touchpad
- Get a Quote :
|
|
The ARX308e is an all-in-one integrated PXI and 3U CompactPCI portable computer solution. The integrated backplane and available controller is enclosed in a rugged aluminum chassis with 15" high resolution touchscreen LCD panel and integrated keyboard / touchpad. Take advantage of higher performance options when building CompactPCI systems by using CompactPCI Express. Fully integrated with the platform it offers bandwidth and the industry's highest performance timing and synchronization capabilities.
|
Specification |
ARX308 |
| Backplane |
3U-size, 8-slot PXI backplane Compliant with PXI specifications Rev2.2 Accepts both PXI and CompactPCI 3U module |
| Slots |
Offer 11 expansion slots |
| Accessible Slots | 1 system slot & 7 Peripheral slots |
| Display |
15" TFT LCD Monitor with touch screen, 1024x 768, 250 nits brightness, 16.2M |
| Drive Bay | Slim DVD-ROM |
| KB/MS |
Integrated keyboard and touchpad, RJ45 connector |
| Power Supply |
PS2 400W power supply
Option: Dual 300W mini-redundant, hot-swappable power supply, current sharing all voltage |
| Construction | Rugged Aluminum Construction with shock absorbing rubber corners |
| Dimension | 412Wx 308Hx 228D mm |
| Weight | 12 kgs |
| Carrying Case | Padded carrying case with wheels |
|
Environment |
Operating | Non-Operating |
| Temperature | 0°C~50°C | -20°C~60°C |
| Shock |
10g, 11ms, half-Sine |
30g, 11ms, half-Sine |
| Vibration |
10-500Hz (0.4 Grms) |
10-500Hz (1.12 Grms) |
| Relative Humidity | 10%~90% | 10%~95% |
| Approval | CE, FCC, RoHS | |
|
Part No. |
Ordering Information |
| ARX308-15USP | 15" LCD with touch screen, 3U, 8-slot Portable Computer, PS2 400W PSU, slim DVD-ROM, Carrying case |
| ARX308-15USR | 15" LCD with touch screen, 3U, 8-slot Portable Computer, 300W+300W redundant PSU, slim DVD-ROM, Carrying case |
