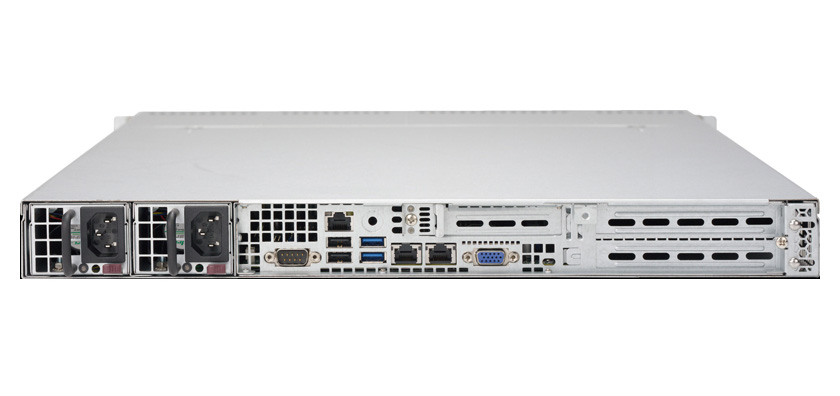

ARC-1019P-WTR Single Scalable Xeon Socket 3647 Server with Redundant Power 1U Rackmount
- DB Processing & Storage
- Data Center Applications
- Get a Quote :
|
|
The ARC-1019P-WTR 1U rackmount server offers the Intel Scalable Xeon processor and up to 1.5TB of memory possible. The server offers 10 removable drive bays with dual 10Gb network
connectivity as well as two full length PCI-E expansion slot.
|
Specification |
ARC-1019P-WTR |
| Chassis | 1U Rackmount |
| CPU |
Socket P (LGA 3647) 2nd Gen. Intel Xeon Scalable Processors (Casacade Lake/Skylake), Dual UPI up to 10.4GT/s Support CPU TDP 70-205W |
| Chipset |
Intel C621 Chipset |
| Slot |
2 PCI-E 3.0 x16 (FHFL) slots 1 PCI-E 3.0 x8 (LP) slot 2 PCI-E 3.0 x4 NVMe M.2 slot |
| VGA | ASPEED AST2500 BMC |
| Memory |
6 DIMM slots Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM |
| HDD | 10 Hot-swap 2.5" drive bays |
| Optical | None |
| Interface |
1 VGA port, 1 COM port, 2 USB 3.0 ports (rear),
2 USB 2.0 ports (rear) 2 RJ45 10GBase-T LAN ports, 1 RJ45 Dedicated IPMI LAN port |
| LAN | 2 10GBase-T LAN port via Intel® X722 + X557 |
| Power Supply |
500W Redundant Power Supplies Platinum Level High-efficiency 100~240VAC, Auto switch |
| Fan | 5 Counter-rotating 4cm PWM fans |
| Dimension | 17.2"Wx 1.7"Hx 23.5"D |
| Weight | 27 lbs (12.25 kgs) |
|
Environment |
Operating | Non-Operating |
| Temperature | 10°C~50°C | -40°C~60°C |
| Relative Humidity | 8%~90% | 5%~95% |
| Approval | RoHS Compliant | |
