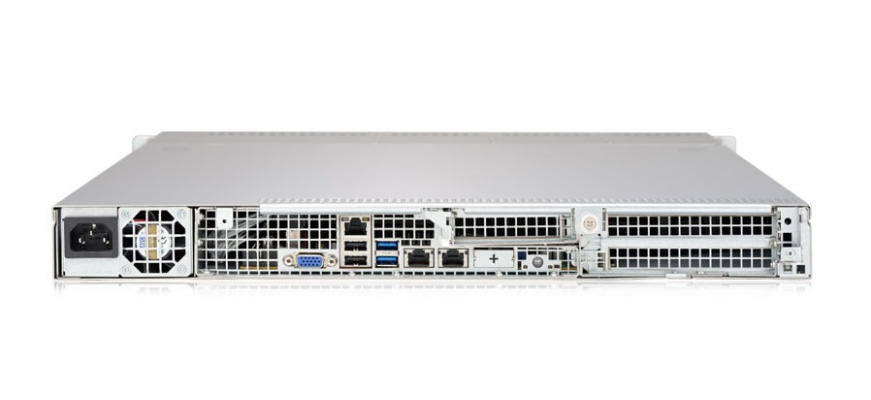

ARC-1028R-TDW Dual Xeon Server with 8 Drive Bays 1U Rackmount
- Data Center Optimized
- Get a Quote :
|
|
The ARC-1028R-TDW supports dual socket 2011 Intel Xeon processors and up to 1TB of DDR4 memory (2TB with LRDIMM). The 1U rackmount supports 8 removable drive bay is ideal for high
density disk intesive enterprise deployment.
|
Specification |
ARC-1028R-TDW |
| Chassis | 1U Rackmount |
| CPU |
Dual Socket R (LGA 2011) Intel Xeon Processors E5-2600 v4/v3 family, QPI up to 9.6 GT/s Support CPU up to 145W TDP |
| Chipset |
Intel C612 Chipset |
| Slot |
2 PCI-E 3.0 x16 (FHHL) slots 1 PCI-E 3.0 (LP) slot |
| VGA | ASPEED AST2400 BMC |
| Memory |
16 DIMM slots Up to 2TB 3DS ECC LRDIMM / 1 TB ECC RDIMM DDR4 2400MHz |
| HDD | 8 Hot-swap 2.5" drive bays |
| Optical | 1 Slim DVD-ROM drive bay |
| Interface |
1 VGA port, 2 USB 3.0 ports (rear), 4 USB
2.0 ports (rear), 2
RJ45 Gigabit Ethernet ports 1 RJ45 Dedicated IPMI LAN port |
| LAN | 2 Intel i350 1GbE LAN port |
| Power Supply |
600W Power Supplies Platinum Level High-efficiency 100~240VAC, Auto switch |
| Fan | 5 Counter-rotating 4cm PWM fans |
| Dimension | 17.2"Wx 1.7"Hx 23.5"D |
| Weight | 46 lbs (20.9 kgs) |
|
Environment |
Operating | Non-Operating |
| Temperature | 10°C~50°C | -40°C~60°C |
| Relative Humidity | 8%~90% | 5%~95% |
| Approval | RoHS Compliant | |
