Server

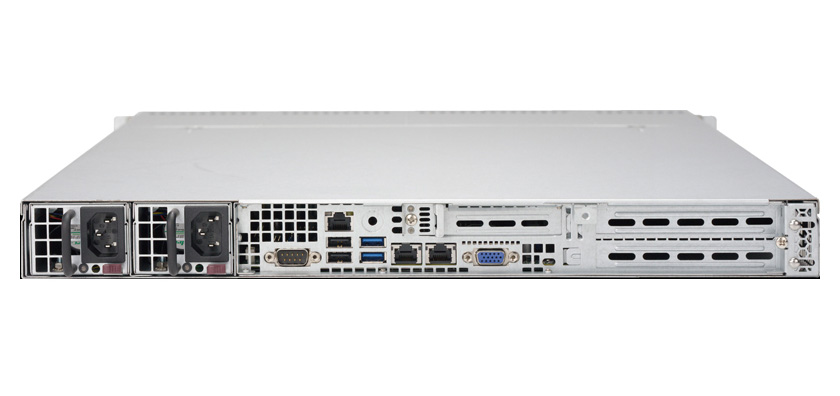

ARC-5018R-WR Single Xeon Server with Redundant Power 1U Rackmount
- Get a Quote :
|
|
The ARC-5018R-WR features a single Intel Xeon E5-2600/1600 processor in a 1U rackmount configuration. It includes redundant power supplies for high availability and fetures
two full length PCI-E expansion capability in a high density form factor.
|
Specification |
ARC-5018R-WR |
| Chassis | 1U Rackmount |
| CPU |
Single Socket R3 (LGA 2011) Intel Xeon processor E5-2600 v4/v3, E5-1600 v4/v3 family Support CPU up to 145W TDP |
| Chipset |
Intel C612 Chipset |
| Slot |
2 PCI-E 3.0 x16 (FHFL) slots 1 PCI-E 3.0 (LP, HL) slot |
| VGA | ASPEED AST2400 BMC |
| Memory |
8 DIMM slots Up to 1TB ECC 3DS LRDIMM, 512GB ECC LRDIMM, 256GB ECC RDIMM, DDR4-2400 MHz |
| HDD | 4 Hot-swap 3.5" drive bays |
| Optical | 1 Slim DVD-ROM drive bay |
| Interface |
1 VGA port, 1 COM port, 2 USB 3.0 ports (rear),
2 USB 2.0 ports (rear) 2 RJ45 Gigabit Ethernet ports, 1 RJ45 Dedicated IPMI LAN port |
| LAN | 2 Intel i350 1GbE LAN port |
| Power Supply |
500W Redundant Power Supplies Platinum Level High-efficiency 100~240VAC, Auto switch |
| Fan | 4 Counter-rotating 4cm PWM fans |
| Dimension | 17.2"Wx 1.7"Hx 25.6"D |
| Weight | 36 lbs (16.3 kgs) |
|
Environment |
Operating | Non-Operating |
| Temperature | 10°C~50°C | -40°C~60°C |
| Relative Humidity | 8%~90% | 5%~95% |
| Approval | RoHS Compliant | |
