Server

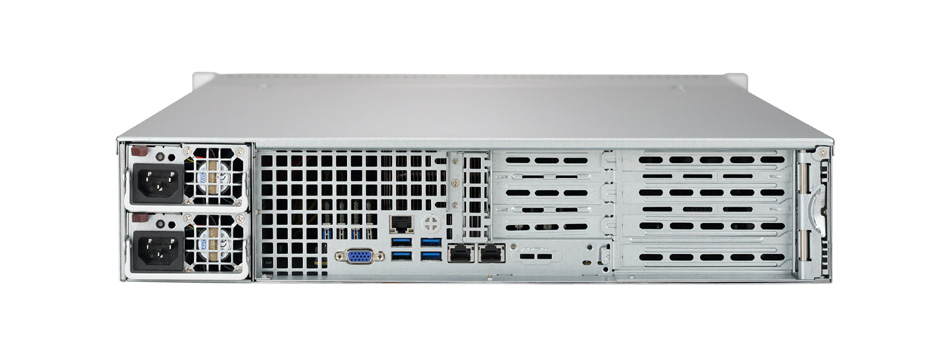

ARC-6028R-WTR Dual Xeon Server with Redundant Power 2U Rackmount
- Get a Quote :
|
|
The ARC-6028R-WTR 2U rackmount server provides dual Xeon processing capability and up to 2TB of memory. The server provides 4 PCI-E
full height expansion slots with 2 additional low profile PCI-E slots. Available with 8 3.5" removable drive bay and redundant power
supply to provide mission critical processing and data storage.
|
Specification |
ARC-6028R-WTR |
| Chassis | 2U Rackmount |
| CPU |
Dual Socket R (LGA 2011) Intel Xeon Processors E5-2600 v4/v3 family, QPI up to 9.6 GT/s Support CPU up to 145W TDP |
| Chipset |
Intel C612 Chipset |
| Slot |
2 PCI-E 3.0 x8 (FHFL) slots 2 PCI-E 3.0 x8 (FHHL) slots 2 PCI-E 3.0 x8 (LP) slots |
| VGA | ASPEED AST2400 BMC |
| Memory |
16 DIMM slots Up to 2TB 3DS ECC LRDIMM / 1 TB ECC RDIMM DDR4 2400MHz |
| HDD | 8 Hot-swap 3.5" drive bays |
| Optical | 1 Slim DVD-ROM drive bay |
| Interface | 1 VGA port, 4 USB 3.0 ports (rear), 2 RJ45 Gigabit Ethernet ports, 1 RJ45 Dedicated IPMI LAN port |
| LAN | 2 Intel i350 1GbE LAN port |
| Power Supply |
740W Redundant Power Supplies Platinum Level High-efficiency 100~240VAC, Auto switch |
| Fan | 3x 8cm 7000RPM PWM fans |
| Dimension | 17.2"Wx 3.5"Hx 25.5"D |
| Weight | 62 lbs (28.1 kgs) gross |
|
Environment |
Operating | Non-Operating |
| Temperature | 10°C~50°C | -40°C~60°C |
| Relative Humidity | 8%~90% | 5%~95% |
| Approval | RoHS Compliant | |
